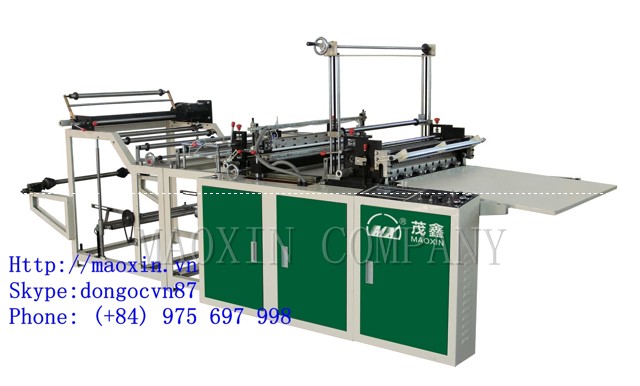

Tên sản phẩm:MXFQ-LQ Cold Cutting Without Tension Bag Making Machine

Thương hiệu:
Mã hàng:MXFQ-LQ
Giá bán:Contact us
Tình trạng sản phẩm:Hết hàng
Số lượng mua:
Đánh giá sản phẩm:
0 Point
Share:

Features:
* Suitable for processing HDPE,LDPE,PP tube film into flat bag and vest bag with and without color.
* Reduce the sealing line stretch when machine running. It can process the bags with width as 1-10mm and    increase the weld strength of the bags.
* Electronic eyes follow the sign of color film. Which keep the location of words and pictures more exactly.
* Welding knife is made of alloy steel, three stage heating with two ends of the heating pipe, heating, independent thermometer control.
* Welding knife doubled back to send, independent servo motor control, pressure cylinder control.
* The setup of length and speed are controlled by the computer which keeps the waste much less and operate much more easier .
* It is accompanying with the automatic functions about carrying material feeding, sealing, cutting, counting, sending and alarm,etc.
      Main Technical Parameters:


Model MXFQ-LQ-800 MXFQ-LQ-1000
Width of bag  Max750mm  Max1000mm
Length of bag  60-1200mm 60-1500mm
Machine speed  30-130pcs/min  30-130pcs/min
Thickness of bag 0.01~0.15mm 0.01~0.15mm
Tolerance  ±1mm ±1mm
Power required  4.5KW 7.5KW
Machine size 1150KG 1600KG
Machine weight 3.2×1.35×1.7 3.2×1.6×1.7
